Ingeo 2003D
Ingeo biopolymer 2003D, a NatureWorks LLC product, is a thermoplastic resin derived from annually renewable resources and is specifically designed for use in fresh food packaging and food serviceware applications. Ingeo biopolymer 2003D is a transparent general purpose extrusion grade that is used naturally or as part of a formulated blend.
Introduction
Ingeo biopolymer 2003D, a NatureWorks LLC product, is a thermoplastic resin derived from annually renewable resources and is specifically designed for use in fresh food packaging and food serviceware applications. Ingeo biopolymer 2003D is a transparent general purpose extrusion grade that is used naturally or as part of a formulated blend. This is a high molecular weight biopolymer grade that processes easily on conventional extrusion equipment. Extruded roll stock is readily thermoformable. See table at right for properties.
Main Grades
| Physical | Test Method | Data | Unit | |
| Density | ASTM D792 | 1.24 | g/cm3 | |
| Melt Index (210 ℃ 2.16 kg ) | ASTM D1238 | 6 | g/10min | |
| Mechanical | Test Method | Data | Unit | |
| Stretch film quantity | ASTM D882 | 3.5 | GPa | |
| Tensile strength fracture | ASTM D882 | 53 | MPa | |
| Tensile strength yield | ASTM D882 | 60 | MPa | |
| Elongation | ASTM D882 | 6.0 | % | |
| Cantilever beam notch impact | ASTM D256 | 16 | J/m | |
| Thermal Performance | Test Method | Data | Unit | |
| Heat distortion temperature | ASTM E2092 | 55 | ℃ | |
| Extrusion | Data | Unit | ||
| Temperature of the cutting section | 180 | ℃ | ||
| Joint Temperature | 200 | ℃ | ||
| Mouth Temperature | 190 | ℃ | ||
| Melting Temperature | 210 | ℃ | ||
| Measurement Section Temperature | 200 | ℃ | ||
| Compression Section Temperature | 190 | ℃ | ||
| Screw Speed | 20-100 | ℃ | ||
Application
- Fresh Food Packaging
- Food Serviceware
- Dairy containers
- Food serviceware
- Transparent food container
- Hinged-ware
- Cold drink cups
Features

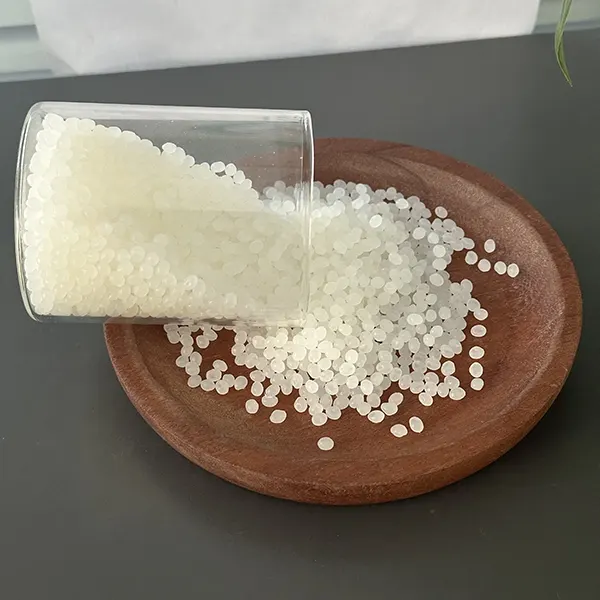

- 2003D polymer is available in pellet form. Drying prior to processing is essential. The polymer is stable in the molten state, provided that the extrusion and drying procedures are followed.
- Ingeo polymers will process on conventional extruders using general purpose screws with L/D ratios from 24:1 to 30:1 and compression ratio of 2.5:1 to 3:1. Smooth barrels are recommended.
- Ingeo resins will process on conventional cast tenter equipment that has been designed for OPS or OPET with minimal modifications. Optimization to your specific equipment may require NatureWorks LLC technical support
Parameters
| Minimum Order Quantity: | 25kg |
| Price: | $1.5-$3 |
| Packaging Details: | 25kg/bag |
| Delivery Time: | 3-5 working days to departure port |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000MT/Month |
