ENGAGE™ 8842

ENGAGE ™ 8842 Polyolefin Elastomer is an ultra-low density ethylene-octene copolymer which offers exceptional properties of an ultra-low density elastomer with the added potential of handling this polymer in pellet form.

Category:
Description

Introduction

ENGAGET 8842 Polyolefin Elastome is an ultra-low density ethylene-octene copolymer which offers exceptionaproperties of an ultra-low density elastomer with the added potential of handling this polymer in pellet form.

ENGAGE 8842 has excellent flow characteristics and provides superb impact properties in blends with polypropylene(PP) and polyethylene (PE). lt performs well in TPO applications where superior low temperature impact properties are desired.

Main Characteristics:

· Pellet form

· Excellent flow characteristics

 · Improved impact in polypropylene and polyethylene

Applications:

· Injection molded industriaL and consumer durable goods

· lmpact modification of TPO

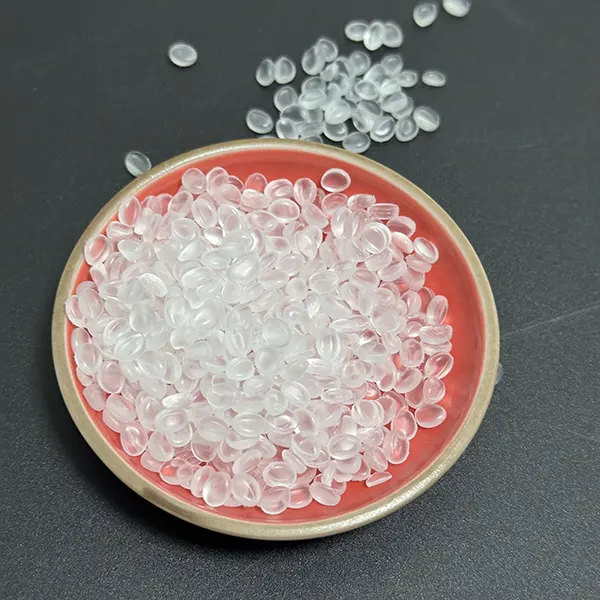

PRIMACOR5990I EAA granules

Parameters



Nominal Value (English) Nominal Value (SI) Test Method
Physical      Density 0.857 g/cm3 0.857 g/cm3 ASTM D792
     Melt Index (190℃/2.16 kg ) 1.0 g/10min 1.0 g/10min ASTM D1238
     Mooney Viscosity (ML 1+4, 250°F(121℃)) 25 MU 25 MU ASTM D1646
Mechanical      Tensile Modulus-100% Secant1
(Compression Molded)
203 psi 1.40 MPa ASTM D638
     Tensile Strength1
(Break, Compression Molded)
435 psi 3.00 MPa ASTM D638
     Tensile Elongation 1

(Break, Compression Molded)

1200 % 1200 % ASTM D638
     Flexural Modulus

1% Secant : Compression Molded

2% Secant : Compression Molded

653 psi

580 psi

4.50 MPa

4.00 MPa

ASTM D790
Elastomers       Tear Strength 2 145  lbf/in 25.4 kN/m ASTM D624
Hardness      Durometer Hardness

Shore A, 1 sec, Compression Molded

Shore D, 1 sec, Compression Molded

54

11

54

11

ASTM D2240
Thermal      Glass Transition Temperature -72.4 °F -58.0 ℃ Dow Method
     Melting Temperature (DSC) 3 100 °F 38.0 ℃ Dow Method
     Peak Crystallization Temperature (DSC) 68.0 °F 20.0 ℃ Dow Method

Notes

These are typical properties only and are not to be construed as specifications.  Users should confirm resuits by their own tests.

1  20 in/min (510 mm/min)

2  Die C

3  10°C/min

Product Stewardship

Dow has a fundamental concern for all who make, distribute, and use its products, and for the environment in which we live. This concern is the basis for our product stewardship philosophy by which we assess the safety, health, and environmental information on our products and then take appropriate steps to protect emplovee and public health and our environment. The success of our product stewardship program rests with each and every individual involved with Dow products – from the initial concept and research, to manufacture, use, sale, disposal, and recycle of each product.

PRIMACOR 5990I EAA Application  PRIMACOR 5990I EAA Application

Customer Notice

Dow strongly encourages its customers to review both their manufacturing processes and their applications of Dow products from the standpoint of human health and environmental quality to ensure that Dow products are not used in ways for which they are not intended or tested. Dow personnel are available to answer your questions and to provide reasonable technical support. Dow product literature, including safety data sheets, should be consulted prior to use of Dow products. Current safety data sheets are available from Dow.

Medical Applications Policy

Any and all medical application use of Dow materials, whether a device, a component, or any type of primary or secondary packaging of a medically related object or substance, needs to be reviewed and approved by Dow before any Dow material can be tested in such application.

Dow reguests that customers considering use of Dow products in medical applications notify Dow so that appropriate assessments may be conducted. Dow does not endorse or claim suitability of its products for specific medical applications. lt is the responsibility of the medical device or pharmaceutical manufacturer to determine that the Dow product is safe. lawful, and technically suitable for the intended use. DOW MAKES NO WARRANTIES, EXPRESS OR IMPLIED, CONCERNING THE SUITABILITY OF ANY DOW PRODUCT FOR USE IN MEDICAL APPLICATIONS.
