A3HG5
Glass fibre reinforced injection moulding grade for machinery components and housings of high stiffness and dimensional stability such as coil formers and bearing cages. Also used for electrically insulating parts.
Description
Introduction

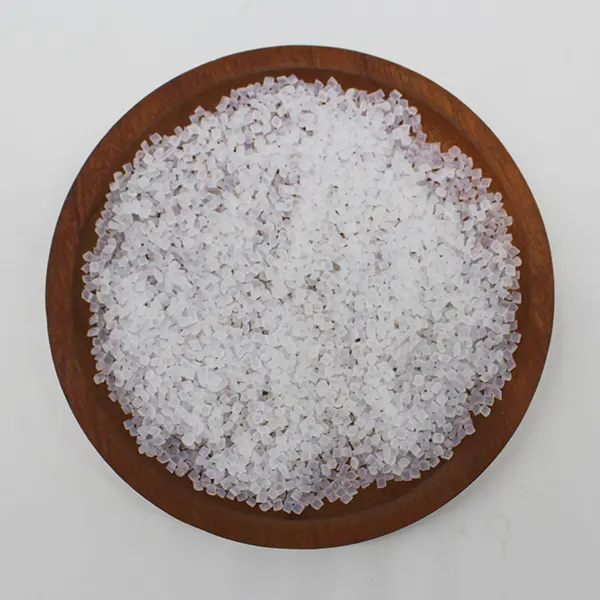

BASF Ultramid® A3HG5 25% Glass Filled PA66 (Dry)
Ultramid A3HG5 is a 25% glass fiber reinforced injection molding PA66 grade.
Parameters
| Physical | Test Method | Data | Unit |
| Density | ISO 1183 | 1.32 | g/m3 |
| Water Absorption | ISO 62 | 5.7-6.3 | % |
| Moisture Absorption at Equilibrium | ISO 62 | 1.7-2.1 | % |
| Viscosity Number | ISO 307 | 145 | cm3/g |
| Linear Mold Shrinkage | 0.0055 | cm/cm | |
| Melt Flow 275 °C 5.00 kg | ISO 1133 | 66 | g/10 min |
Material properties
- Stable size
- High liquidity
- High rigidity
- Heat resistant aging
- Hot water resistance
- Oil resistant
- Good weather resistance
Parameters
| Minimum Order Quantity: | 25kg |
| Price: | $1.8-$3.2 |
| Packaging Details: | 25kg/bag |
| Delivery Time: | 3-5 working days to departure port |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000MT/Month |
